IRS2526DS - MINI-8 BALLAST CONTROLLER IC

Datasheet Summary

Features

  • 600V half-bridge high- and low-side gate driver Integrated programmable oscillator 15.6V voltage clamp on VCC Micro-power startup current Programmable preheat frequency Programmable preheat time Programmable run frequency Internal frequency dither for EMI reduction EOL window comparator and timer Fixed dead-time Ignition voltage.

📥 Download Datasheet

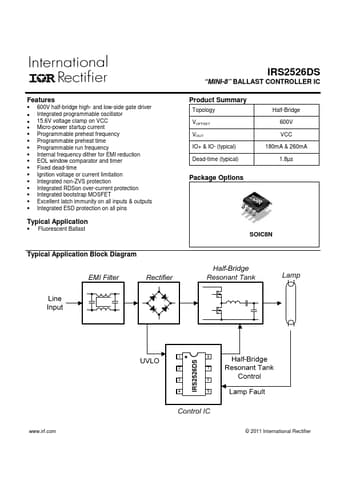

Datasheet preview – IRS2526DS

Datasheet Details

Part number IRS2526DS
Manufacturer International Rectifier
File Size 80.75 KB
Description MINI-8 BALLAST CONTROLLER IC
Datasheet download datasheet IRS2526DS Datasheet
