IRS2538DSPBF

Magnetic Replacement Ballast

IRS2538DSPBF Features

* Ballast control plus half-bridge driver in one IC

* Single-stage topology (no PFC stage required)

* High PF and low THD

* Preheat, ignition and running lamp modes

* Closed-loop lamp current control

* Half-bridge NZVS protection

* Adaptive dead-time

* Lamp insert aut

IRS2538DSPBF General Description

This IC takes full advantage of IR’s patented ballast and high-voltage technologies to realize a simple, highperformance magnetic ballast replacement solution. The IC includes a novel single-stage circuit topology and control method to achieve high power factor and low THD without a PFC stage or any.

IRS2538DSPBF Datasheet (565.74 KB)

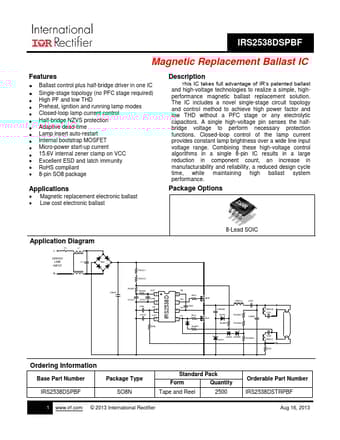

Preview of IRS2538DSPBF PDF

Datasheet Details

Part number:

IRS2538DSPBF

Manufacturer:

International Rectifier

File Size:

565.74 KB

Description:

Magnetic replacement ballast.
