P102 Datasheet, Elements, International Rectifier

P102 Features

• Elements Glass passivated junctions for greater reliability Electrically isolated base plate Available up to 1200 V RRM, V DRM High dynamic characteristics Wide choice of circuit configurations

PDF File Details

Part number:

P102

Manufacturer:

International Rectifier

File Size:

82.67kb

Download:

📄 Datasheet

Description:

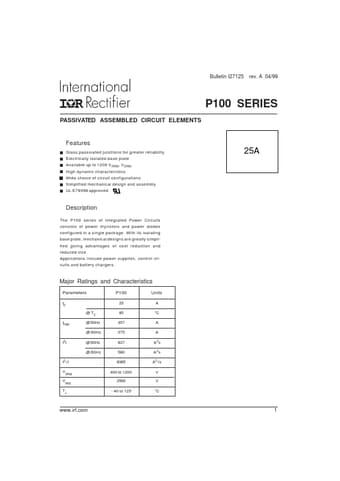

Passivated assembled circuit elements. The P100 series of Integrated Power Circuits consists of power thyristors and power diodes configured in a single package. With its i

P102 Application

• Applications include power supplies, control circuits and battery chargers. Major Ratings and Characteristics Parameters ID @ TC IFSM @ 50Hz @ 60Hz
