P1020HDB, P1020HDB-NIKO Datasheet - NIKO-SEM

P1020HDB - N-Channel Enhancement Mode Field Effect Transistor

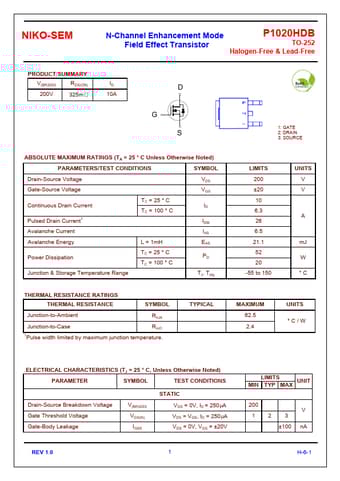

NIKO-SEM N-Channel Enhancement Mode P1020HDB Field Effect Transistor TO-252 Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 200V 325mΩ ID 10A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 ° C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 Avalanche Current Avalanche Energy Power Dissipation Junction & Storage Temperature Range TC = 25 ° C TC = 100 ° C L = 1mH TC = 25 ° C TC = 1

P1020HDB-NIKO-SEM.pdf
