* Units A V A V The Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications are in parallel switching
STPS20L15D Datasheet (311.02 KB)
STPS20L15D
International Rectifier
311.02 KB
Schottky rectifier.

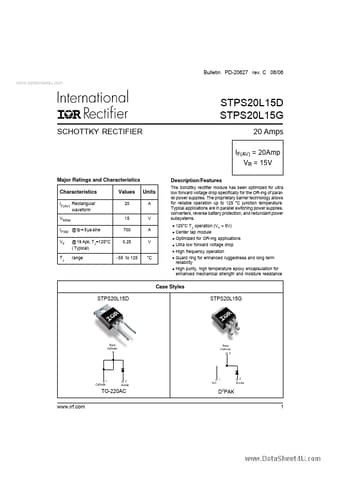

Bulletin PD-20627 rev. C 06/06
www.datasheet4u.com
STPS20L15D STPS20L15G
SCHOTTKY RECTIFIER 20 Amps
IF(AV) = 20Amp VR = 15V
Major Ratings and Charact.
