STPS20L25CT, STPS20L25C LOW DROP POWER SCHOTTKY RECTIFIER

STPS20L25CT Description

® STPS20L25CT/CG LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 10 A 25 V 150 °C 0.35 V K A2 A1 K .
Dual center tap Schottky rectifier suited to Switched Mode Power Supplies and high frequency DC to DC converters.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20L25CT, STPS20L25C. Please refer to the document for exact specifications by model.

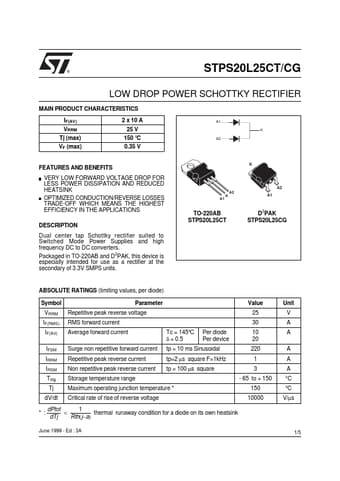

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20L25CT, STPS20L25C
Manufacturer
STMicroelectronics ↗
File Size
89.13 KB
Datasheet
STPS20L25C_STMicroelectronics.pdf
Description
LOW DROP POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS20L25CT, STPS20L25C.
Please refer to the document for exact specifications by model.
