STPS20L45CF, STPS20L45 LOW DROP POWER SCHOTTKY RECTIFIER

STMicroelectronics

Description

® STPS20L45CF/CW/CT/CFP/CG LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) .
Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters.

📥 Download Datasheet

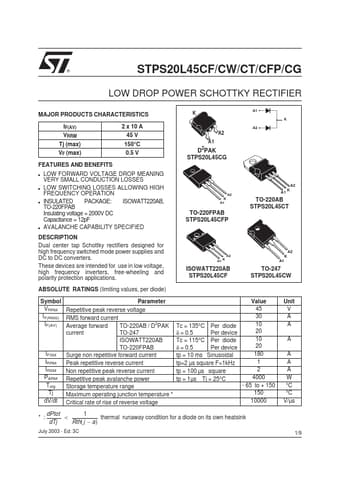

STPS20L45CF Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS20L45CF, STPS20L45. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS20L45CF, STPS20L45
Manufacturer: STMicroelectronics ↗
File Size: 145.11 KB
Datasheet: STPS20L45_STMicroelectronics.pdf
Description: LOW DROP POWER SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: STPS20L45CF, STPS20L45.
Please refer to the document for exact specifications by model.

Features

* s K A1 K 2 x 10 A 45 V 150°C 0.5 V A1 2 A2 A2 D PAK STPS20L45CG s s s LOW FORWARD VOLTAGE DROP MEANING VERY SMALL CONDUCTION LOSSES LOW SWITCHING LOSSES ALLOWING HIGH FREQUENCY OPERATION INSULATED PACKAGE: ISOWATT220AB, TO-220FPAB Insulating voltage = 2000V DC Capacitance = 12pF AVALANCHE

Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current IF(AV) Average forward TO-220AB / D2PAK current TO-247 ISOWATT220AB TO-220FPAB IFSM Surge non repetitive forward current IRRM Peak repetitive reverse current IRSM Non repe
