STPS20L40CW

LOW DROP POWER SCHOTTKY RECTIFIER

STPS20L40CW Features

* s 2 x 10 A 40 V 150°C 0.5 V A2 K s s s LOW FORWARD VOLTAGE DROP MEANING VERY SMALL CONDUCTION LOSSES LOW DYNAMIC LOSSES AS A RESULT OF THE SCHOTTKY BARRIER INSULATED PACKAGE: ISOWATT220AB, TO-220FPAB Insulating voltage = 200V DC Capacitance = 12pF AVALANCHE CAPABILITY SPECIFIED A2 K A1 A2

STPS20L40CW General Description

A2 Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters. These devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications. ABSOLUTE RATINGS (limiting values, per diode) A1.

STPS20L40CW Datasheet (123.95 KB)

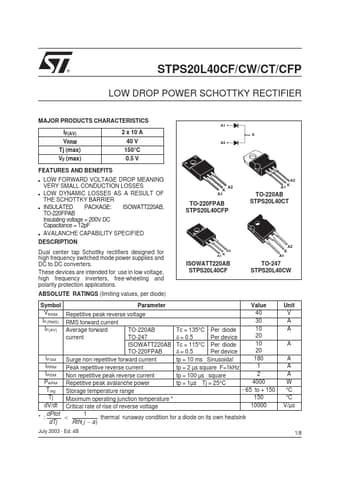

Preview of STPS20L40CW PDF

Datasheet Details

Part number:

STPS20L40CW

Manufacturer:

STMicroelectronics ↗

File Size:

123.95 KB

Description:

Low drop power schottky rectifier.
