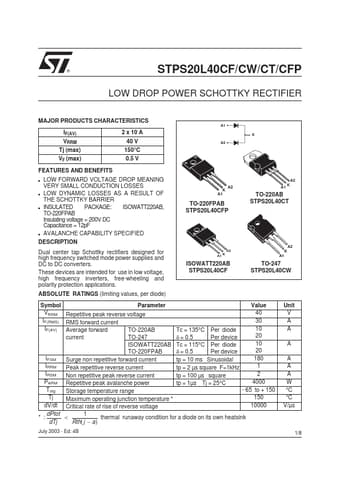

STPS20L40CF, STPS20L40 LOW DROP POWER SCHOTTKY RECTIFIER

® STPS20L40CF/CW/CT/CFP LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) .
A2 Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters.

STPS20L40_STMicroelectronics.pdf

STPS20L40CF Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS20L40CF, STPS20L40. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS20L40CF, STPS20L40

Manufacturer:

STMicroelectronics ↗

File Size:

123.95 KB

Description:

LOW DROP POWER SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: STPS20L40CF, STPS20L40.
Please refer to the document for exact specifications by model.

Features

* s 2 x 10 A 40 V 150°C 0.5 V A2 K s s s LOW FORWARD VOLTAGE DROP MEANING VERY SMALL CONDUCTION LOSSES LOW DYNAMIC LOSSES AS A RESULT OF THE SCHOTTKY BARRIER INSULATED PACKAGE: ISOWATT220AB, TO-220FPAB Insulating voltage = 200V DC Capacitance = 12pF AVALANCHE CAPABILITY SPECIFIED A2 K A1 A2

Applications

* ABSOLUTE RATINGS (limiting values, per diode) A1 K A2 K A1 ISOWATT220AB STPS20L40CF TO-247 STPS20L40CW Symbol Parameter Value 40 VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current 30 IF(AV) 10 Average forward TO-220AB Tc = 135°C Per diode 20 current TO-247 δ = 0.5 Per device 10
