STPS20L15

Low drop OR-ing power Schottky diode

STPS20L15 Features

* VERY LOW FORWARD VOLTAGE DROP FOR LESS POWER DISSIPATION AND REDUCED HEATSINK SIZE REVERSE VOLTAGE SUITED TO OR-ing OF 3V, 5V and 12V RAILS DESCRIPTION Packaged in TO-220AC or D2PAK, this device is especially intended for use as an OR-ing diode in fault tolerant power supply equipments. TO-220AC STP

STPS20L15 General Description

Packaged in TO-220AC or D2PAK, this device is especially intended for use as an OR-ing diode in fault tolerant power supply equipments. TO-220AC STPS20L15D A A K 20 A 15 V 125°C 0.33 V K K NC D2PAK STPS20L15G ABSOLUTE RATINGS (limiting values) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM IRSM Tstg Tj d.

STPS20L15 Datasheet (363.55 KB)

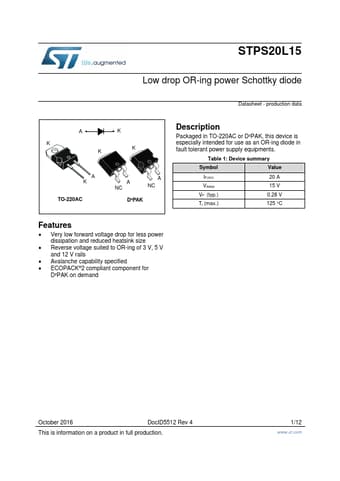

Preview of STPS20L15 PDF

Datasheet Details

Part number:

STPS20L15

Manufacturer:

STMicroelectronics ↗

File Size:

363.55 KB

Description:

Low drop or-ing power schottky diode.
