STPS20L45C

Low drop power Schottky rectifier

STPS20L45C Features

* Low forward voltage drop meaning very small conduction losses

* Low switching losses allowing high frequency operation

* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine

* Avalanche capability specified

* ECOPACK®2 compliant component for D²PAK on demand Oct

STPS20L45C General Description

Dual center tap Schottky rectifiers designed for high frequency switched mode power supplies and DC to DC converters. These devices are intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications. Table 1: Device summary Symbol Value IF(AV) VRRM.

STPS20L45C Datasheet (517.86 KB)

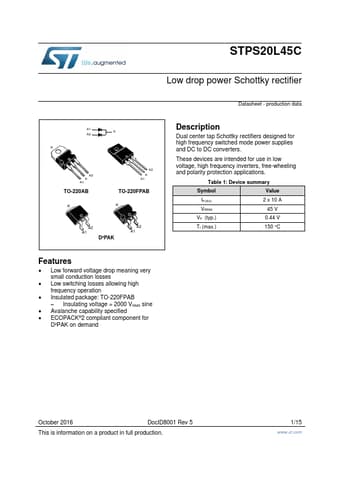

Preview of STPS20L45C PDF

Datasheet Details

Part number:

STPS20L45C

Manufacturer:

STMicroelectronics ↗

File Size:

517.86 KB

Description:

Low drop power schottky rectifier.
STPS20L45C Low drop power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 A1 D.
