STPS20L40C Low drop power Schottky rectifier

STMicroelectronics

Description

STPS20L40C Low drop power Schottky rectifier Main product characteristics A1 IF(AV) 2 x 10 A K A2 VRRM t(s) Tj (max) VF(max) 40 V 150° C 0.5 V .
uc Dual center tap Schottky rectifiers designed for d high frequency switched mode power supplies ro and DC to DC converters.

📥 Download Datasheet

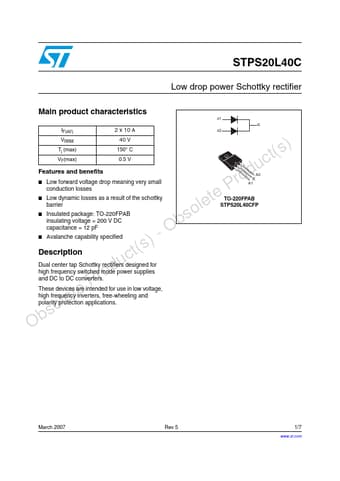

STPS20L40C Datasheet Preview — Preview of STPS20L40C PDF

Datasheet Specifications

Part number: STPS20L40C
Manufacturer: STMicroelectronics ↗
File Size: 107.90 KB
Datasheet: STPS20L40C-STMicroelectronics.pdf
Description: Low drop power Schottky rectifier

Features

* ro
* Low forward voltage drop meaning very small P conduction losses te
* Low dynamic losses as a result of the schottky le barrier o
* Insulated package: TO-220FPAB s insulating voltage = 200 V DC b capacitance = 12 pF - O

Applications

* A2 K A1 TO-220FPAB STPS20L40CFP March 2007 Rev 5 1/7 www. st. com 7 Characteristics 1 Characteristics STPS20L40C Table 1. Absolute Ratings (limiting values) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage IF(RMS) RMS forward voltage IF(AV) Average forward current 40
