STPS20L15DPBF

Schottky Rectifier

STPS20L15DPBF Features

* www.datasheet4u.com Base cathode

* TO-220AC 1 Cathode 3 Anode 125 °C TJ operation (VR < 5 V) Center tap module Pb-free Available Optimized for OR-ing applications RoHS

* Ultra low forward voltage drop COMPLIANT High frequency operatio

STPS20L15DPBF General Description

The Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications are in parallel switching power supplie.

STPS20L15DPBF Datasheet (147.22 KB)

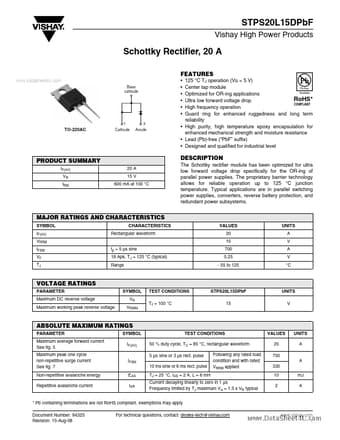

Preview of STPS20L15DPBF PDF

Datasheet Details

Part number:

STPS20L15DPBF

Manufacturer:

Vishay ↗ Siliconix

File Size:

147.22 KB

Description:

Schottky rectifier.
