STPS1L30UPBF - Schottky Rectifier

STPS1L30UPBF Description

STPS1L30UPbF Vishay High Power Products Schottky Rectifier, 1.0 A .
The STPS1L30UPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board.

STPS1L30UPBF Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation Cathode Anode RoHS COMPLIANT
* Guard ring for enhanced ruggedness and long term reliability
* Lead (Pb)-free (“PbF” suffix) SMB www. DataSheet4U. com

STPS1L30UPBF Applications

* requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 ms sine 1.0 Apk,

📥 Download Datasheet

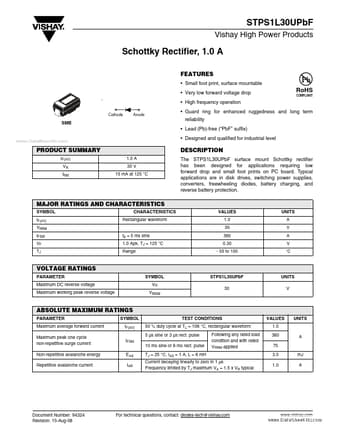

Preview of STPS1L30UPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3
