STPS1L20M Datasheet, Rectifier, ST Microelectronics

STPS1L20M Features

  • Rectifier
  • Very small conduction losses
  • Negligible switching losses
  • Extremely fast switching
  • Low forward voltage drop for higher efficiency and extented bat

PDF File Details

Part number:

STPS1L20M

Manufacturer:

STMicroelectronics ↗

File Size:

64.42kb

Download:

📄 Datasheet

Description:

Low drop power schottky rectifier. Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in STmite, this devi

Datasheet Preview: STPS1L20M 📥 Download PDF (64.42kb)

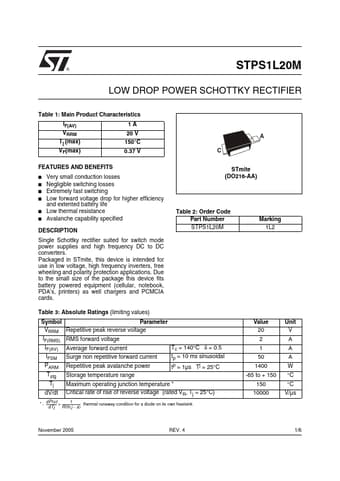

Page 2 of STPS1L20M Page 3 of STPS1L20M

STPS1L20M Application

  • Applications Due to the small size of the package this device fits battery powered equipment (cellular, notebook, PDA’s, printers) as well chargers
