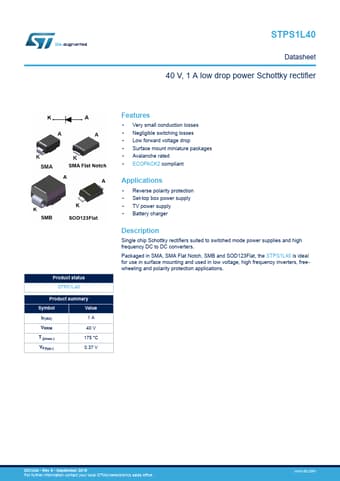

STPS1L40 Datasheet, Rectifier, ST Microelectronics

STPS1L40 Features

• Rectifier
• Very small conduction losses
• Negligible switching losses
• Low forward voltage drop
• Surface mount miniature packages
• Avalanche rated

PDF File Details

Part number:

STPS1L40

Manufacturer:

STMicroelectronics ↗

File Size:

394.80kb

Download:

📄 Datasheet

Description:

1a low drop power schottky rectifier. Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMA F

STPS1L40 Application

• Applications
• Reverse polarity protection
• Set-top box power supply
• TV power supply
• Battery charger Descriptio
