STPS1L40M LOW DROP POWER SCHOTTKY RECTIFIER

STPS1L40M Description

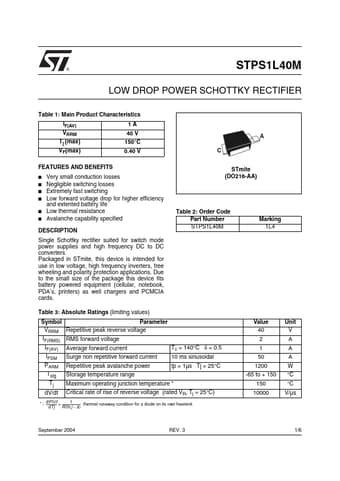

® STPS1L40M LOW DROP POWER SCHOTTKY RECTIFIER Table 1: Main Product Characteristics IF(AV) VRRM Tj (max) VF(max) 1A 40 V 150°C 0.40 V A C .
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS1L40M Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency and extented battery life
* Low thermal resistance

STPS1L40M Applications

* Due to the small size of the package this device fits battery powered equipment (cellular, notebook, PDA’s, printers) as well chargers and PCMCIA cards. STmite (DO216-AA) Table 2: Order Code Part Number STPS1L40M Marking 1L4 Table 3: Absolute Ratings (limiting values) Symbol Parameter VRRM I
