STPS1L40U Datasheet, Rectifier, STMicroelectronics

STPS1L40U Features

  • Rectifier
  • Very small conduction losses
  • Negligible switching losses
  • Low forward voltage drop
  • Surface mount miniature packages
  • Avalanche rated

PDF File Details

Part number:

STPS1L40U

Manufacturer:

STMicroelectronics ↗

File Size:

394.80kb

Download:

📄 Datasheet

Description:

1a low drop power schottky rectifier. Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMA F

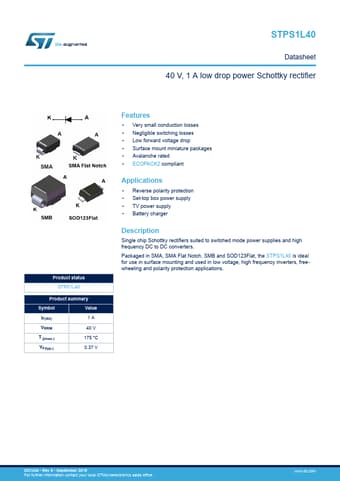

Datasheet Preview: STPS1L40U 📥 Download PDF (394.80kb)
Page 2 of STPS1L40U Page 3 of STPS1L40U

STPS1L40U Application

  • Applications
  • Reverse polarity protection
  • Set-top box power supply
  • TV power supply
  • Battery charger Descriptio
