STPS1L30 Datasheet, Rectifier, ST Microelectronics

STPS1L30 Features

  • Rectifier
  • Very low forward voltage drop for less power dissipation
  • Surface mount miniature packages
  • Avalanche rated
  • ECOPACK2 compliant Applications

PDF File Details

Part number:

STPS1L30

Manufacturer:

STMicroelectronics ↗

File Size:

359.68kb

Download:

📄 Datasheet

Description:

1a low drop power schottky rectifier. Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters

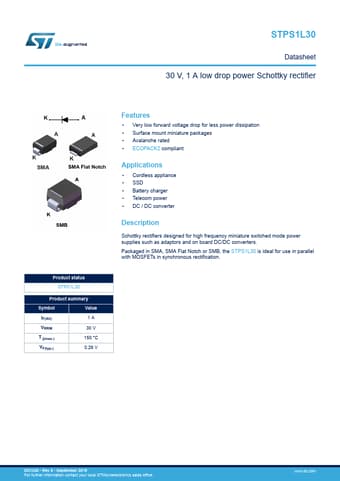

Datasheet Preview: STPS1L30 📥 Download PDF (359.68kb)
Page 2 of STPS1L30 Page 3 of STPS1L30

STPS1L30 Application

  • Applications
  • Cordless appliance
  • SSD
  • Battery charger
  • Telecom power
  • DC / DC converter Description Sc
