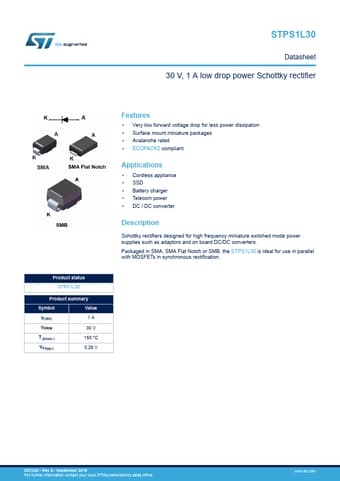

STPS1L30U Datasheet, Rectifier, STMicroelectronics

STPS1L30U Features

• Rectifier
• Very low forward voltage drop for less power dissipation
• Surface mount miniature packages
• Avalanche rated
• ECOPACK2 compliant Applications

PDF File Details

Part number:

STPS1L30U

Manufacturer:

STMicroelectronics ↗

File Size:

359.68kb

Download:

📄 Datasheet

Description:

1a low drop power schottky rectifier. Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters

STPS1L30U Application

• Applications
• Cordless appliance
• SSD
• Battery charger
• Telecom power
• DC / DC converter Description Sc
