STPS1L40A 1A low drop power Schottky rectifier

Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMA Flat Notch, SMB and SOD123Flat, the STPS1L40 is ideal for use in surface mounting and used in low voltage, high frequency inverters, freewheeling and polarity protectio.

STPS1L40A Features

* Very small conduction losses

* Negligible switching losses

* Low forward voltage drop

* Surface mount miniature packages

* Avalanche rated

* ECOPACK2 compliant Applications

* Reverse polarity protection

* Set-top box power supply

STPS1L40A-STMicroelectronics.pdf

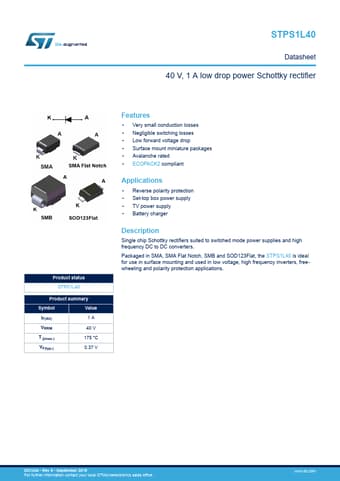

Preview of STPS1L40A PDF
STPS1L40A Datasheet Preview Page 2 STPS1L40A Datasheet Preview Page 3

Datasheet Details

Part number:

STPS1L40A

Manufacturer:

STMicroelectronics ↗

File Size:

394.80 KB

Description:

1a low drop power schottky rectifier.
