STPS1L60

1A low drop power Schottky rectifier

ST Microelectronics

STPS1L60 Features

* Negligible switching losses

* Low forward voltage drop

* Surface mount miniature packages

* Avalanche rated

* ECOPACK2 compliant Applications

* Lighting

* Desktop power supply

* Battery charger

* Set top box

* Auxiliar

STPS1L60 General Description

Axial and surface mount power Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA, SMA Flat Notch, STmite flat, DO-41 and SOD123Flat, the STPS1L60 is ideal for use in low voltage, high frequency inverters and small battery chargers. DS2.

STPS1L60 Datasheet (411.56 KB)

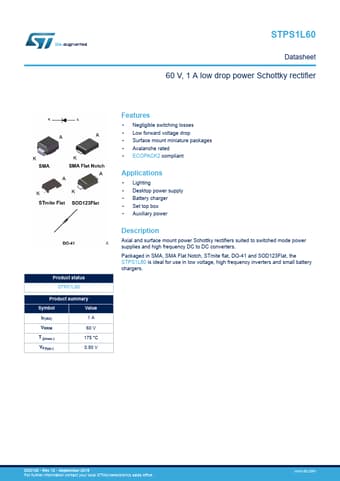

STPS1L60 Datasheet Preview — Preview of STPS1L60 PDF

Datasheet Details

Part number:

STPS1L60

Manufacturer:

STMicroelectronics ↗

File Size:

411.56 KB

Description:

1a low drop power schottky rectifier.
STPS1L60 Datasheet 60 V, 1 A low drop power Schottky rectifier Product status STPS1L60 Product summary Symbol Value IF(AV) 1A VRRM 60 V T j(m.
