STPS1L60A, STPS1L60 1A low drop power Schottky rectifier

STPS1L60A Description

STPS1L60 Datasheet 60 V, 1 A low drop power Schottky rectifier Product status STPS1L60 Product summary Symbol Value IF(AV) 1A VRRM 60 V T j(m.
Axial and surface mount power Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters.

STPS1L60A Features

* Negligible switching losses
* Low forward voltage drop
* Surface mount miniature packages
* Avalanche rated

STPS1L60A Applications

* Lighting
* Desktop power supply
* Battery charger
* Set top box

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS1L60A, STPS1L60. Please refer to the document for exact specifications by model.

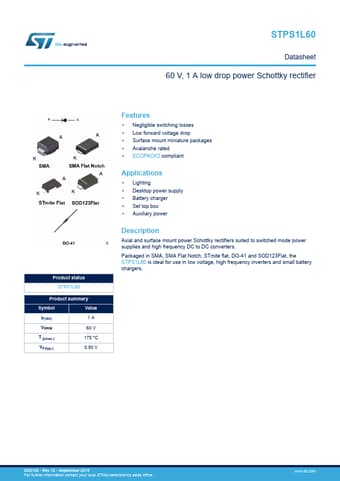

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS1L60A, STPS1L60
Manufacturer
STMicroelectronics ↗
File Size
411.56 KB
Datasheet
STPS1L60_STMicroelectronics.pdf
Description
1A low drop power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS1L60A, STPS1L60.
Please refer to the document for exact specifications by model.
