STPS20L15G

Schottky Rectifier

STPS20L15G Features

* Base cathode 2

* 3 Anode 1 D2PAK N/C 125 °C TJ operation (VR < 5 V) Center tap module Optimized for OR-ing applications Ultra low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term reliability

STPS20L15G General Description

PRODUCT SUMMARY IF(AV) VR IRM 20 A 15 V 600 mA at 100 °C The Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Ty.

STPS20L15G Datasheet (143.81 KB)

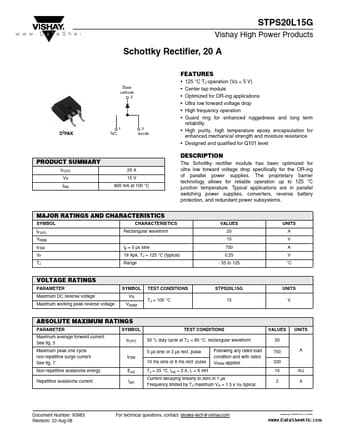

Preview of STPS20L15G PDF

Datasheet Details

Part number:

STPS20L15G

Manufacturer:

Vishay ↗ Siliconix

File Size:

143.81 KB

Description:

Schottky rectifier.
