HIP6500 Datasheet, Interface, Intersil Corporation

HIP6500 Features

  • Interface
  • Provides 5 ACPI-Controlled Voltages - 5V Active/Sleep (5VDUAL) - 3.3V Active/Sleep (3.3VDUAL) - 2.5V/3.3V Active/Sleep (2.5VMEM) - 3.3V Always Present (3.3VSB) - 2.5V Clock (A

PDF File Details

Part number:

HIP6500

Manufacturer:

Intersil Corporation

File Size:

155.39kb

Download:

📄 Datasheet

Description:

Multiple linear power controller with acpi control interface. 3V3 (Pin 7) Connect this pin to the ATX 3.3V output. This pin provides the output current for the 2V5CLK pin, and is monitored for po

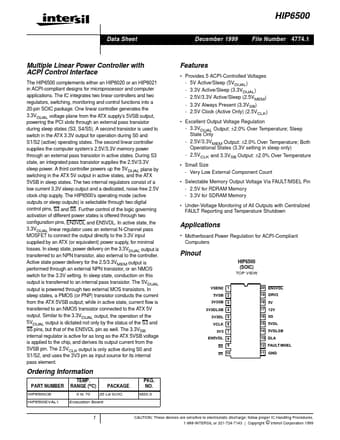

Datasheet Preview: HIP6500 📥 Download PDF (155.39kb)
Page 2 of HIP6500 Page 3 of HIP6500

HIP6500 Application

  • Applications The IC integrates two linear controllers and two regulators, switching, monitoring and control functions into a 20-pin SOIC package. O
