HIP6503 Multiple Linear Power Controller

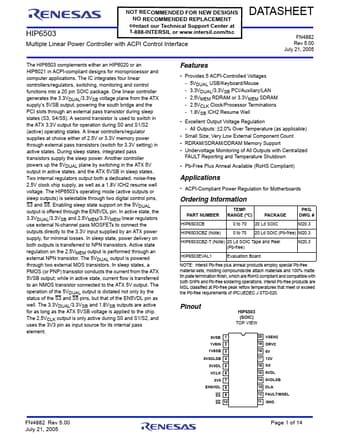

HIP6503 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Multiple Linear Power Controller with ACPI Control Interface DATASHEET FN4882 Rev 5.00 July 21, 2005 The HIP6503 complements either an HIP6020 or an HIP6021 in ACPI-compliant designs for microprocessor and computer applications. The IC integrates four linear controllers/regulators, switching, monitoring and control functions into a 20 pin SOIC pack.

HIP6503 Features

* Provides 5 ACPI-Controlled Voltages - 5VDUAL USB/Keyboard/Mouse - 3.3VDUAL/3.3VSB PCI/Auxiliary/LAN - 2.5VMEM RDRAM or 3.3VMEM SDRAM - 2.5VCLK Clock/Processor Terminations - 1.8VSB ICH2 Resume Well

* Excellent Output Voltage Regulation - All Outputs: 2.0% Over Temperature (as appl
