HIP6501A Triple Linear Power Controller

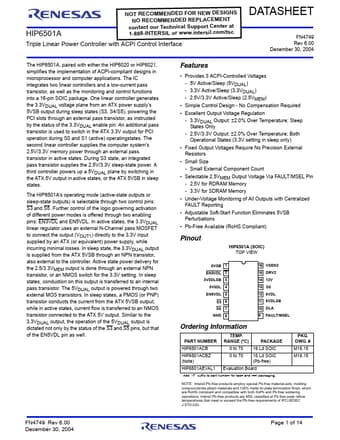

HIP6501A NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Triple Linear Power Controller with ACPI Control Interface DATASHEET FN4749 Rev 6.00 December 30, 2004 The HIP6501A, paired with either the HIP6020 or HIP6021, simplifies the implementation of ACPI-compliant designs in microprocessor and computer applications. The IC integrates two linear controllers and a low-current pass transistor, as well as t.

HIP6501A Features

* Provides 3 ACPI-Controlled Voltages - 5V Active/Sleep (5VDUAL) - 3.3V Active/Sleep (3.3VDUAL) - 2.5V/3.3V Active/Sleep (2.5VMEM)

* Simple Control Design - No Compensation Required

* Excellent Output Voltage Regulation - 3.3VDUAL Output: 2.0% Over Temperature; Sleep States

HIP6501A Datasheet (722.77 KB)

HIP6501A Datasheet Preview — Preview of HIP6501A PDF

Datasheet Details

Part number:

HIP6501A

Manufacturer:

Renesas ↗

File Size:

722.77 KB

Description:

Triple linear power controller.
