DATASHEET HIP6500B Multiple Linear Power Controller with ACPI Control Interface FN4870 Rev 0.00 May 2000 The HIP6500B complements either an HIP6020 or an HIP6021 in ACPI-compliant designs for microprocessor and computer applications. The IC integrates two linear controllers and two regulators, switching, monitoring and control functions into a 20-pin SOIC package. One linear controller generates the 3.3VDUAL voltage plane from the ATX supply’s 5VSB output, powering the PCI slots through an ex.

HIP6500B Features

* Provides 5 ACPI-Controlled Voltages - 5V Active/Sleep (5VDUAL) - 3.3V Active/Sleep (3.3VDUAL) - 2.5V/3.3V Active/Sleep (2.5/3.3VMEM) - 3.3V Always Present (3.3VSB) - 2.5V Clock (Active Only) (2.5VCLK)

* Excellent Output Voltage Regulation - 3.3VDUAL Output: 2% Over Temperature; Sl

HIP6500B Datasheet (1.30 MB)

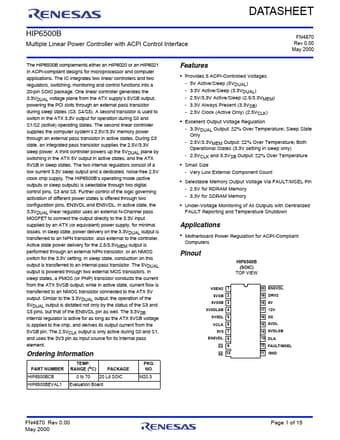

HIP6500B Datasheet Preview — Preview of HIP6500B PDF
