HIP6521 PWM and Triple Linear Power Controller

HIP6521 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc PWM and Triple Linear Power Controller DATASHEET FN4837 Rev.5.00 Oct 16, 2006 The HIP6521 provides the power control and protection for four output voltages in high-performance microprocessor and computer applications. The IC integrates a voltage-mode PWM controller and three linear controllers, as well as monitoring and protection functions into a.

HIP6521 Features

* Provides 4 Regulated Voltages - Memory Core, AGP, Clock, and Memory Controller Hub Power

* ACPI Compatible

* Drives Bipolar Linear Pass Transistors

* Externally Resistor-Adjustable Outputs

* Simple Single-Loop Control Design - Voltage-Mode PWM Control

HIP6521 Datasheet (681.67 KB)

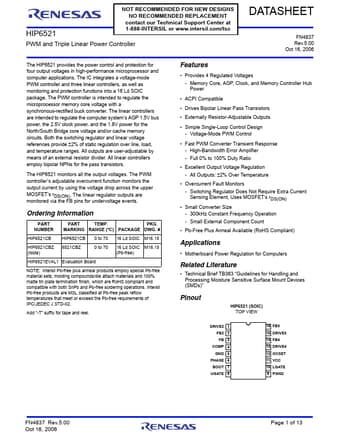

HIP6521 Datasheet Preview — Preview of HIP6521 PDF

Datasheet Details

Part number:

HIP6521

Manufacturer:

Renesas ↗

File Size:

681.67 KB

Description:

Pwm and triple linear power controller.
