HSP45102 Datasheet, Oscillator, Intersil Corporation

HSP45102 Features

  • Oscillator
  • 33MHz, 40MHz Versions
  • 32-Bit Frequency Control
  • BFSK, QPSK Modulation
  • Serial Frequency Load
  • 12-Bit Sine Output
  • Offset Binary O

PDF File Details

Part number:

HSP45102

Manufacturer:

Intersil Corporation

File Size:

48.05kb

Download:

📄 Datasheet

Description:

12-bit numerically controlled oscillator. NAME VCC GND P0-1 CLK SCLK SEL_L/M SFTEN MSB/LSB ENPHAC SD TXFR I I I I I I I I I TYPE +5V power supply pin. Ground Phase modulation

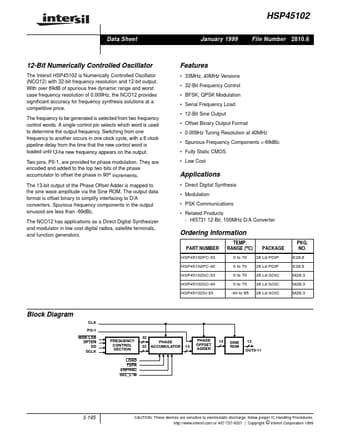

Datasheet Preview: HSP45102 📥 Download PDF (48.05kb)
Page 2 of HSP45102 Page 3 of HSP45102

HSP45102 Application

  • Applications as a Direct Digital Synthesizer and modulator in low cost digital radios, satellite terminals, and function generators. Features
