HSP45106 Datasheet, Oscillator, Intersil Corporation

HSP45106 Features

  • Oscillator
  • 25.6MHz, 33MHz Versions
  • 32-Bit Center and Offset Frequency Control
  • 16-Bit Phase Control
  • 8 Level PSK Supported Through Three Pin Interface

PDF File Details

Part number:

HSP45106

Manufacturer:

Intersil Corporation

File Size:

379.01kb

Download:

📄 Datasheet

Description:

16-bit numerically controlled oscillator. NAME VCC GND C(15:0) A(2:0) CS WR CLK ENPOREG I I I I I I TYPE +5 power supply pin. Ground. Control input bus for loading phase, fre

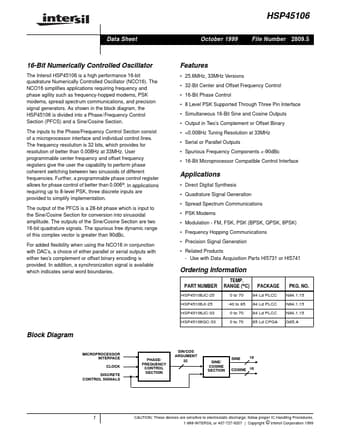

Datasheet Preview: HSP45106 📥 Download PDF (379.01kb)
Page 2 of HSP45106 Page 3 of HSP45106

HSP45106 Application

  • Applications requiring frequency and phase agility such as frequency-hopped modems, PSK modems, spread spectrum communications, and precision signal
