HSP45256

Binary Correlator

HSP45256 Features

* Reconfigurable 256 Stage Binary Correlator

* 1-Bit Reference x 1, 2, 4, or 8-Bit Data

* Separate Control and Reference Interfaces

* 25.6, 33MHz Versions

* Configurable for 1-D and 2-D Operation

* Double Buffered Mask and Reference

* Programmabl

HSP45256 General Description

SYMBOL VCC GND DIN0-7 PLCC PIN NUMBER 16, 33, 63 14, 35, 55, 70, 77 17-24 I TYPE The +5V power supply pin. Ground. The DIN0-7 bus consists of eight single data input pins. The assignment of the active pins is determined by the configuration. Data is loaded synchronous to the rising edge of CLK. DIN0.

HSP45256 Datasheet (154.33 KB)

Preview of HSP45256 PDF

Datasheet Details

Part number:

HSP45256

Manufacturer:

Intersil Corporation

File Size:

154.33 KB

Description:

Binary correlator.

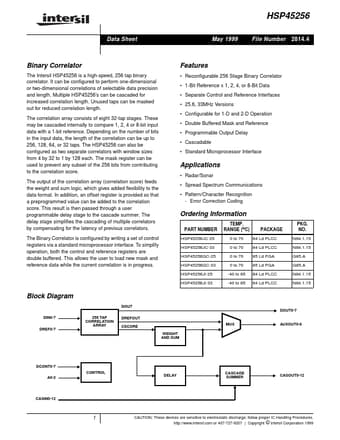

HSP45256 Data Sheet May 1999 File Number 2814.4 Binary Correlator The Intersil HSP45256 is a high-speed, 256 tap binary correlator. It can be configur.
