HSP45116

Numerically Controlled Oscillator/Modulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Rochester Electronics LLC HSP45116GC-15 NUMERICALLY CONTROLLED OSCILLATO DigiKey 0 4 units
$81.83

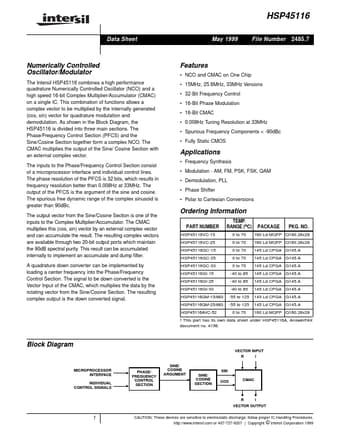

HSP45116 Datasheet (129.42 KB)

Preview of HSP45116 PDF Datasheet

Datasheet Details

Part number:

HSP45116

Manufacturer:

Intersil Corporation

File Size:

129.42 KB

Description:

Numerically controlled oscillator/modulator

HSP45116 Features

* NCO and CMAC on One Chip

* 15MHz, 25.6MHz, 33MHz Versions

* 32-Bit Frequency Control

* 16-Bit Phase Modulation

* 16-Bit CMAC

* 0.008Hz Tuning Resolution at 33MHz

* Spurious Frequency Components < -90dBc

* Fully Static CMOS Applicatio

HSP45116 General Description

NAME VCC GND C0-15 AD0-1 CS WR CLK ENPHREG ENOFREG ENCFREG ENPHAC ENTIREG NUMBER A1, A9, A15, G1, J15, Q1, Q7, Q15 A8, A14, B1, H1, H15, P15, Q2, Q8 N8-11, P8-13, Q9-14 N7, P7 P6 Q6 Q5 M1 N1 N5 Q3 P5 TYPE I I I I I I I I I I +5V Power supply input. Power supply ground input. Control input bus for lo.
