HSP45240883

Address Sequencer

HSP45240883 Features

* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.

* Block Oriented 24-Bit Sequencer

* Configurable as Two Independent 12-Bit Sequencers

* 24 x 24 Crosspoint Switch

* Programmable Delay on 12

HSP45240883 General Description

The Intersil HSP45240/883 is a high speed Address Sequencer which provides specialized addressing for functions like FFTs, 1-D and 2-D filtering, matrix operations, and image manipulation. The sequencer supports block oriented addressing of large data sets up to 24 bits at clock speeds up to 40MHz. S.

HSP45240883 Datasheet (141.49 KB)

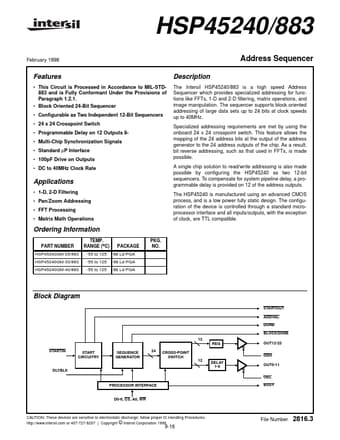

Preview of HSP45240883 PDF

Datasheet Details

Part number:

HSP45240883

Manufacturer:

Intersil Corporation

File Size:

141.49 KB

Description:

Address sequencer.
