HUF76107D3 - N-Channel MOSFET

Intersil Corporation

📥 Download Datasheet

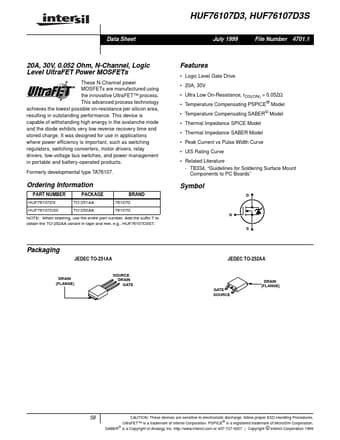

HUF76107D3 Datasheet Preview — Preview of HUF76107D3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76107D3
Manufacturer: Intersil Corporation
File Size: 109.39 KB
Datasheet: HUF76107D3_IntersilCorporation.pdf
Description: N-Channel MOSFET

HUF76107D3 Product details

Features

Logic Level Gate Drive.
20A, 30V.
Ultra Low On-Resistance, rDS(ON) = 0.052Ω.
Temperature Compensating PSPICE® Model.
Temperature Compensating SABER© Model.
Thermal Impedance SPICE Model.
Thermal Impedance SABER Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER HUF76107D3.
