HUF76112SK8 - N-Channel MOSFET

Datasheet Summary

Features

  • 7.5A, 30V - rDS(ON) = 0.026Ω, VGS = 10V - rDS(ON) = 0.033Ω, VGS = 5V.
  • PWM Optimized for Synchronous Buck.

📥 Download Datasheet

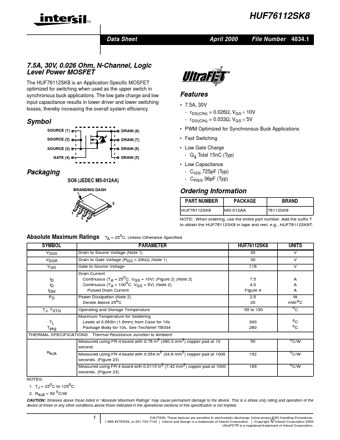

Datasheet preview – HUF76112SK8

Datasheet Details

Part number HUF76112SK8
Manufacturer Intersil Corporation
File Size 255.80 KB
Description N-Channel MOSFET
Datasheet download datasheet HUF76112SK8 Datasheet
Additional preview pages of the HUF76112SK8 datasheet.

📁 Similar Datasheet

  • HUF76113DK8 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76113SK8 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76113T3ST - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76105DK8 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76105SK8 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76107D3 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76107D3S - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76107P3 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76121D3 - N-Channel MOSFET (Fairchild Semiconductor)
  • HUF76121D3S - N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text
HUF76112SK8 TM Data Sheet April 2000 File Number 4834.1 7.5A, 30V, 0.026 Ohm, N-Channel, Logic Level Power MOSFET The HUF76112SK8 is an Application-Specific MOSFET optimized for switching when used as the upper switch in synchronous buck applications. The low gate charge and low input capacitance results in lower driver and lower switching losses, thereby increasing the overall system efficiency. Features • 7.5A, 30V - rDS(ON) = 0.026Ω, VGS = 10V - rDS(ON) = 0.
