HUF76113T3ST - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

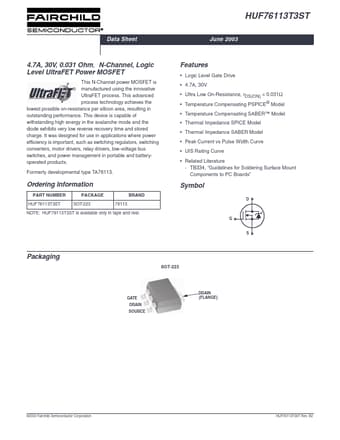

HUF76113T3ST Datasheet Preview — Preview of HUF76113T3ST PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76113T3ST
Manufacturer: Fairchild Semiconductor
File Size: 614.97 KB
Datasheet: HUF76113T3ST_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

HUF76113T3ST Product details

Features

Logic Level Gate Drive.
4.7A, 30V.
Ultra Low On-Resistance, rDS(ON) = 0.031Ω.
Temperature Compensating PSPICE® Model.
Temperature Compensating SABER™ Model.
Thermal Impedance SPICE Model.
Thermal Impedance SABER Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER HUF76113T3.
