HUF76129D3, N-Channel MOSFET

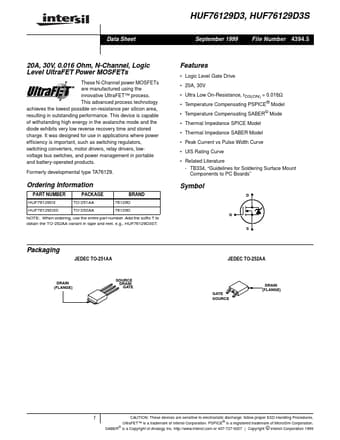

HUF76129D3, HUF76129D3S Data Sheet September 1999 File Number 4394.5 20A, 30V, 0.016 Ohm, N-Channel, Logic Level UltraFET Power MOSFETs These N-Channel power MOSFETs are manufactured using the innovative UltraFET™ process.

This advanced process technology achieves the lowest possible on-resistance per silicon area, resulting in outstanding performance.

This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge

HUF76129D3 Features

* Logic Level Gate Drive

* 20A, 30V

* Ultra Low On-Resistance, rDS(ON) = 0.016Ω

* Temperature Compensating PSPICE® Model

* Thermal Impedance SPICE Model

* Thermal Impedance SABER Model

* Peak Curre
