IRFD310 - N-Channel Power MOSFET

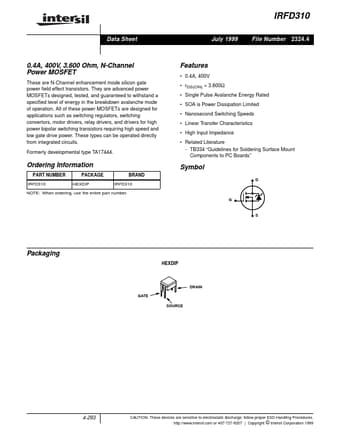

IRFD310 Data Sheet July 1999 File Number 2324.4 0.4A, 400V, 3.600 Ohm, N-Channel Power MOSFET These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar.

IRFD310 Features

* 0.4A, 400V

* rDS(ON) = 3.600Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance

* Related Literature - TB334 “Guidelines for
