IRFF9220 P-Channel Power MOSFET

IRFF9220 Data Sheet July 1998 File Number 2288.2 -2.5A, -200V, 1.5 Ohm, P-Channel Power MOSFETs These are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. They are P-Channel enhancement mode silicon gate power field effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requir.

IRFF9220 Features

* -2.5A, -200V

* rDS(ON) = 1.5Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance Symbol D Ordering Information PART NUMBER IRFF9220

IRFF9220_IntersilCorporation.pdf

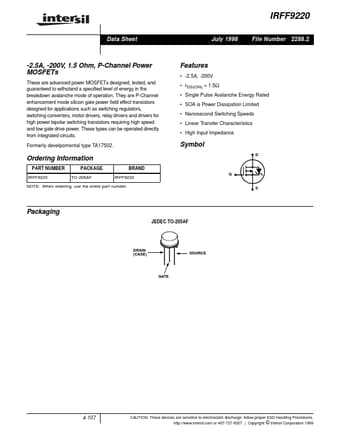

IRFF9220 Datasheet Preview — Preview of IRFF9220 PDF

Datasheet Details

Part number:

IRFF9220

Manufacturer:

Intersil Corporation

File Size:

327.78 KB

Description:

P-channel power mosfet.
