IRFR420 N-Channel Power MOSFETs

www.DataSheet4U.com IRFR420, IRFU420 Data Sheet July 1999 File Number 2411.3 2.5A, 500V, 3.000 Ohm, N-Channel Power MOSFETs These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and.

IRFR420 Features

* 2.5A, 500V

* rDS(ON) = 3.000Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance

* Related Literature - TB334 “Guidelines for

IRFR420_IntersilCorporation.pdf

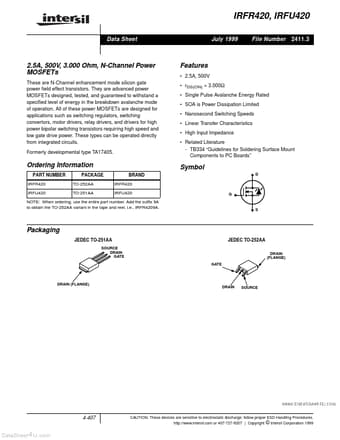

IRFR420 Datasheet Preview — Preview of IRFR420 PDF

Datasheet Details

Part number:

IRFR420

Manufacturer:

Intersil Corporation

File Size:

249.52 KB

Description:

N-channel power mosfets.
