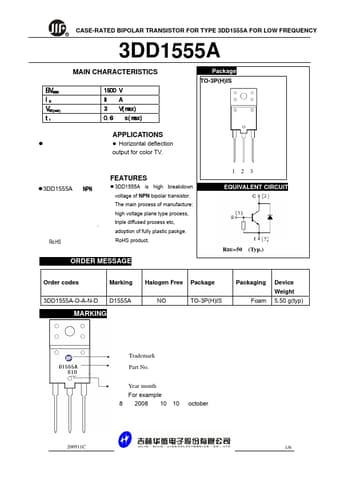

3DD1555A Datasheet, Transistor, JILIN SINO

3DD1555A Features

• Transistor z 3DD1555A is high breakdown voltage of NPN bipolar transistor. The main process of manufacture: high voltage plane type process, triple diffused process etc, adoption of fully plastic

PDF File Details

Part number:

3DD1555A

Manufacturer:

JILIN SINO

File Size:

142.46kb

Download:

📄 Datasheet

Description:

Case-rated bipolar transistor. of Changes 905B Add order message,marking,etc. 911C 200911C 6/6

3DD1555A Application

• Applications z z Horizontal deflection output for color TV. z3DD1555A RoHS NPN , FEATURES z 3DD1555A is high breakdown voltage of NPN bipolar tra
