3DD159A - NPN Transistor

3DD159A Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification 3DD159A .
With TO-3 packaging. Large collector current. Low collector saturation voltage. High power dissipation. Minimum Lot-to-Lot variat.

3DD159A Applications

* Designed for use in DC-DC converter
* Driver of solenoid or motor ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 5 A PD Tota

📥 Download Datasheet

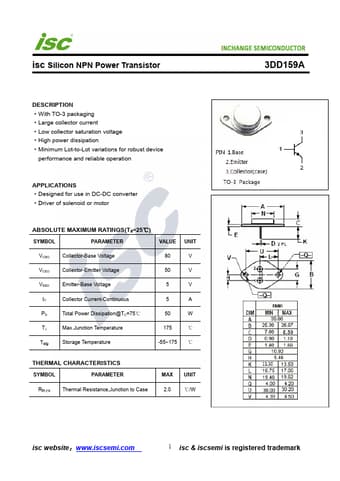

Preview of 3DD159A PDF
datasheet Preview Page 2

Datasheet Details

Part number
3DD159A
Manufacturer
INCHANGE
File Size
179.10 KB
Datasheet
3DD159A-INCHANGE.pdf
Description
NPN Transistor
