3DD159F - NPN Transistor

3DD159F Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 3DD159F .
With TO-3 packaging. Large collector current. Low collector saturation voltage. High power dissipation. Minimum Lot-to-Lot variat.

3DD159F Applications

* Designed for use in DC-DC converter
* Driver of solenoid or motor ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 300 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 5 A PD To

📥 Download Datasheet

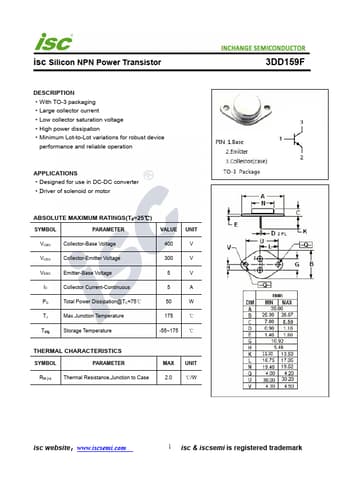

Preview of 3DD159F PDF
datasheet Preview Page 2

Datasheet Details

Part number
3DD159F
Manufacturer
INCHANGE
File Size
188.06 KB
Datasheet
3DD159F-INCHANGE.pdf
Description
NPN Transistor
