SPE10S60H-A - Intelligent Power Module

JILIN SINO

📥 Download Datasheet

SPE10S60H-A Datasheet Preview — Preview of SPE10S60H-A PDF

Datasheet Details

Part number	SPE10S60H-A
Manufacturer	JILIN SINO
File Size	1.37 MB
Description	Intelligent Power Module
Datasheet	SPE10S60H-A-JILINSINO.pdf

SPE10S60H-A Product details

Description

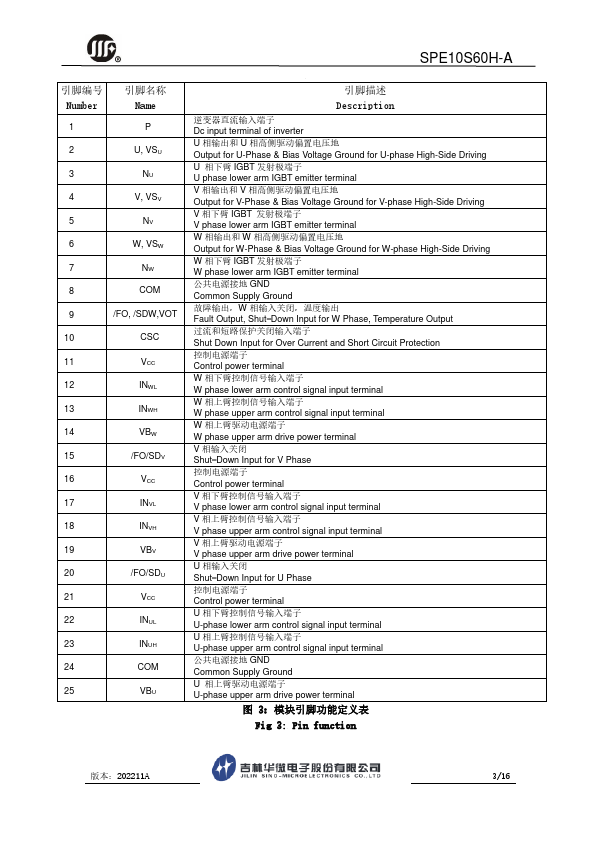

Dc input terminal of inverter U U Output for U-Phase & Bias Voltage Ground for U-phase High-Side Driving U IGBT U phase lower arm IGBT emitter terminal V V Output for V-Phase & Bias Voltage Ground for V-phase High-Side Driving V IGBT V phase lower arm IGBT emitter terminal W W Output for W-Phase & Bias Voltage Ground for W-phase High-Side Driving W IGBT W phase lower arm IGBT emitter terminal GND Common Supply Ground ，W ， Fault Output, Shut Down Input for W Phase, Temperatu

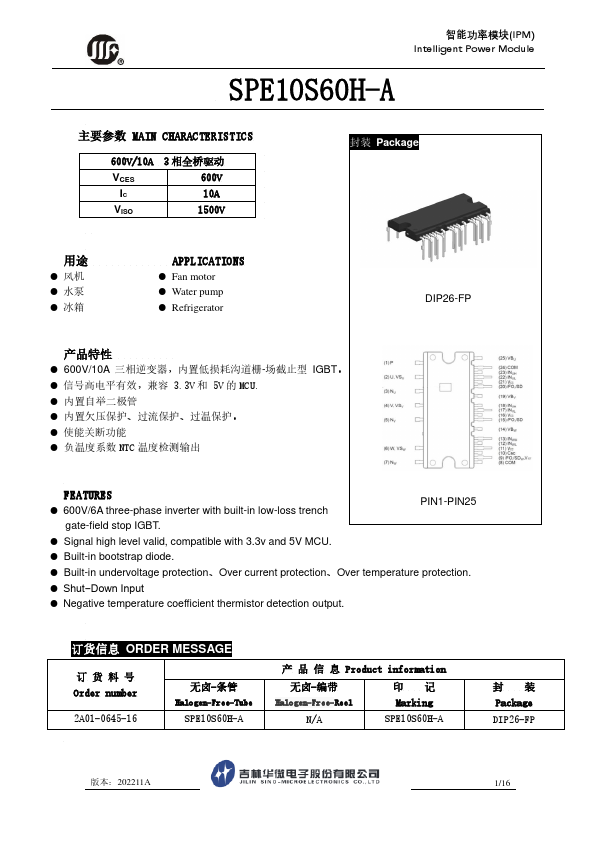

Features

600V/6A three-phase inverter with built-in low-loss trench PIN1-PIN25 gate-field stop IGBT.
Signal high level valid, compatible with 3.3v and 5V MCU.
Built-in bootstrap diode.
Built-in undervoltage protection、Over current protection、Over temperature protection.
Shut.
Down Input.
Negative temperature coefficient thermistor detection output. ORDER.
