NJM2342

QUAD BUFFER for REFERENCE CIRCUIT IC

NJM2342 Features

* Quad Buffer internal

* Sink/Source Output

* Offset Voltage

* Operating Voltage

* Quiescent Current

* Bipolar Technology

* Package Outline TVSP10 Vio=1mV typ. 3V to 14V 1mA typ. TVSP10

* PIN CONFIGURATION 1 A 2 3 4 B 5 C D 10 9 8 7 6 PIN FUNCTION 1. A OUTPUT 2. A +INPUT

NJM2342 General Description

The NJM2342 is a 4 channel buffer IC packaged in the small TVSP 10. The NJM2342 provides buffered voltage from the external input voltage. The sink-source output configuration effectively absorbs transient response of load changes. Therefore, it is suitable for reference voltage generation for Video.

NJM2342 Datasheet (146.30 KB)

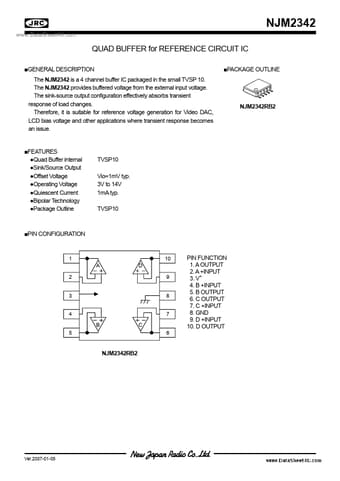

Preview of NJM2342 PDF

Datasheet Details

Part number:

NJM2342

Manufacturer:

JRC

File Size:

146.30 KB

Description:

Quad buffer for reference circuit ic.
