NJM2360A

HIGH PRECISION DC/DC CONVERTOR CONTROL IC

NJM2360A Features

* Precision Reference 1.25V±2%

* Output Switch Current 1.5A (MAX)

* Operating Voltage 2.5V

* to 40V

* Internal Over Current Limit Circuit

* Supply Voltage V+ 2.5V

* to 40V

* Output Voltage

* Oscillator Frequency

* Package

NJM2360A General Description

The NJM2360A is a control circuit containing the primary functions required for DC to DC CONVERTOR. This device consist of high precision reference, comparator controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This IC was specifically desig.

NJM2360A Datasheet (116.50 KB)

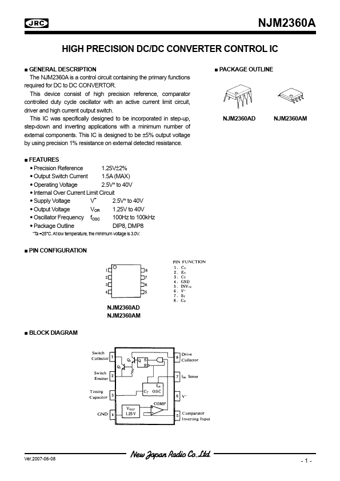

Preview of NJM2360A PDF

Datasheet Details

Part number:

NJM2360A

Manufacturer:

New Japan Radio

File Size:

116.50 KB

Description:

High precision dc/dc convertor control ic.
