NJM2345 Datasheet, Ic, JRC

NJM2345 Features

  • Ic a standby function that can be used for both power saving and safety operation.
  • PACKAGE OUTLINE NJM2345D NJM2345M
  • FEATURES
  • Operating Voltage 3.0V to 40V

PDF File Details

Part number:

NJM2345

Manufacturer:

JRC

File Size:

173.42kb

Download:

📄 Datasheet

Description:

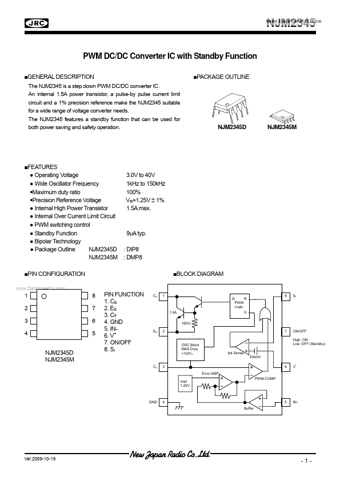

Pwm dc/dc converter ic. The NJM2345 is a step down PWM DC/DC converter IC. An internal 1.5A power transistor, a pulse-by pulse current limit circuit and a 1%

Datasheet Preview: NJM2345 📥 Download PDF (173.42kb)
Page 2 of NJM2345 Page 3 of NJM2345

NJM2345 Application

  • Applications Step-Down Converter VIN RSC ON/OFF CONTROL RON/OFF 7 8 1 2 C1 5 L1 VOUT NJM2345 6 CIN 4 CT 3 R2 D1 R1 COUT Though the ION/OFF de
