NJM2344 - PWM DC/DC Converter IC

JRC

📥 Download Datasheet

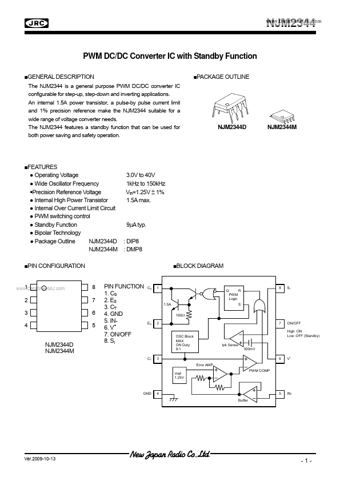

NJM2344 Datasheet Preview — Preview of NJM2344 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NJM2344
Manufacturer: JRC
File Size: 186.67 KB
Datasheet: NJM2344_JRC.pdf
Description: PWM DC/DC Converter IC

NJM2344 Product details

Description

The NJM2344 is a general purpose PWM DC/DC converter IC configurable for step-up, step-down and inverting applications.

Features

Operating Voltage 3.0V to 40V.
Wide Oscillator Frequency 1kHz to 150kHz.
Precision Reference Voltage Vth=1.25V ± 1%.
Internal High Power Transistor 1.5A max.
Internal Over Current Limit Circuit.
PWM switching control.
Standby Function 9µA typ.
Bipolar Technology.
Package Outline NJM2344D : DIP8 NJM2344M : DMP8.
PIN.
