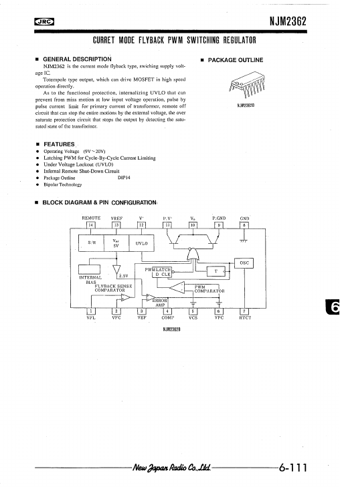

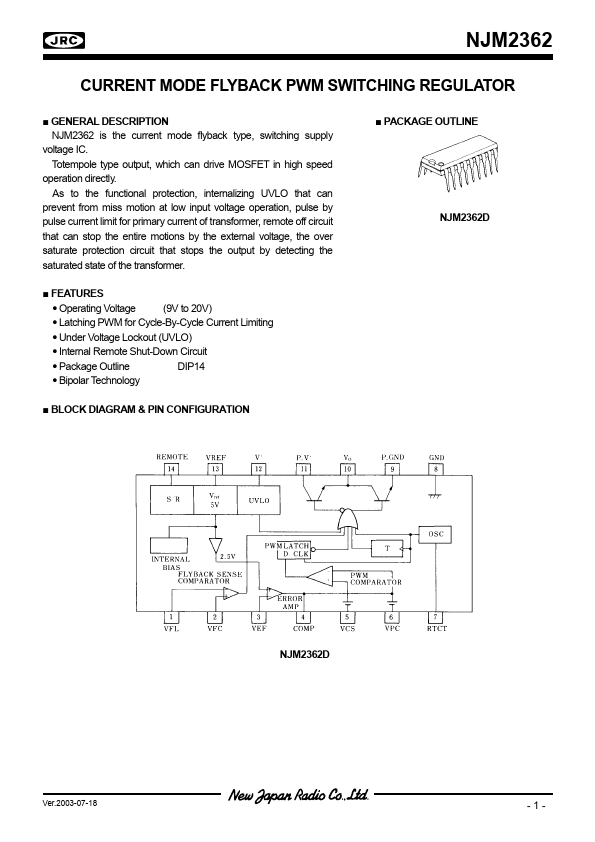

NJM2362 - CURRET MODE FLYBACK PWM SWITCHING REGULATOR

New Japan Radio

📥 Download Datasheet

NJM2362 Datasheet Preview — Preview of NJM2362 PDF

Datasheet Details

Part number: NJM2362
Manufacturer: New Japan Radio
File Size: 190.04 KB
Datasheet: NJM2362_NewJapanRadio.pdf
Description: CURRET MODE FLYBACK PWM SWITCHING REGULATOR

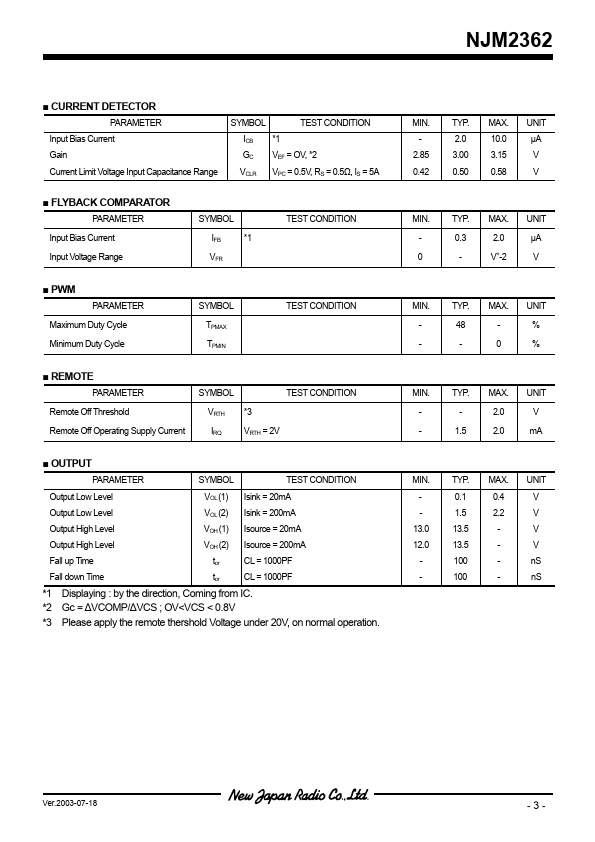

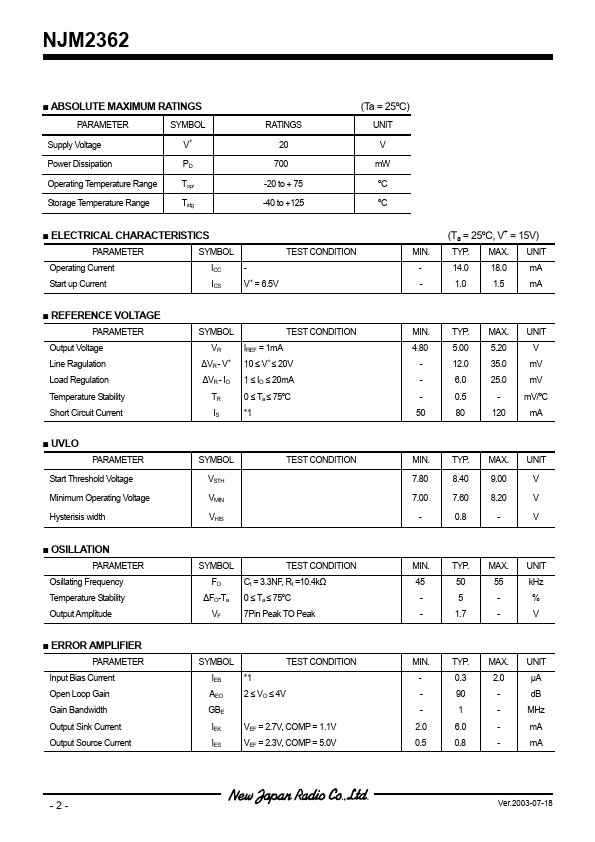

NJM2362 Product details

Description

NJM2362 is the current mode flyback type, switching supply voltage IC.Totempole type output, which can drive MOSFET in high speed operation directly.As to the functional protection, internalizing UVLO that can prevent from miss motion at low input voltage operation, pulse by pulse current limit for primary current of transformer, remote off circuit that can stop the entire motions by the external voltage, the over saturate protection circuit that stops the output by detecting the saturated sta

Features

S.
Operating Voltage (9V to 20V).
Latching PWM for Cycle-By-Cycle Current Limiting.
Under Voltage Lockout (UVLO).
Internal Remote Shut-Down Circuit.
Package Outline DIP14.
Bipolar Technology.
BLOCK.
